Button cell batteries are widely used in compact electronic devices that require stable and reliable power. These small round batteries are commonly found in watches, medical equipment, calculators, key fobs, wearable devices, and industrial backup systems. Because of their compact structure and wide compatibility, both button and coin cell batteries are essential components in modern electronics manufacturing.

Understanding button battery types, dimensions, chemistry, and applications can help buyers and engineers select the correct battery for different operating environments. This guide explains common button battery sizes, naming systems, and coin battery applications in a simple and practical way.

What Is a Button Cell Battery?

A button cell battery is a small, circular power source encased in a durable metal housing. It is designed for low-power electronic products that require stable voltage and long shelf life. Because of their shape, these batteries are also commonly referred to as coin cell batteries.

Button cell battery products are available in lithium, alkaline, silver oxide, or zinc-air chemistries. Different battery chemistries provide different voltage levels, operating temperatures, and service life characteristics.

Compared with cylindrical batteries, button batteries save space and are ideal for compact portable devices.

Button Cell vs Coin Cell Battery: Is there a difference?

In many industries, the terms 'button cell' and 'coin cell' are used interchangeably. Both describe compact circular batteries used in small electronic devices.

However, some manufacturers use “coin cell battery” more often for lithium batteries such as CR2032 or CR2025, while “button cell battery” may also refer to alkaline and silver oxide models such as LR41 or SR626SW.

Although naming habits vary, the structure and application principles are generally similar.

How Button Cell Battery Naming Systems Works?

Battery model codes help users identify chemistry, voltage, and dimensions quickly. Understanding these codes is important when comparing button battery types.

What Does CR Mean?

“CR” designates lithium-manganese dioxide coin cells with a nominal voltage of 3V.

Common CR series models include:

• CR2016
• CR2025
• CR2032

These batteries are widely used because of their stable voltage output and long storage life.

For example:

• CR2032 is commonly used in CMOS memory backup and remote controls.
• CR2025 is often used in key fobs and portable electronics.
• CR2016 is suitable for slim wearable devices.

What Does LR Mean?

“LR” refers to alkaline button cell batteries with a nominal voltage of 1.5V.

Common LR models include:

• LR41
• LR626

LR batteries are often used in toys, thermometers, watches, and small consumer electronics due to their low cost and wide availability.

Some markets may also use AG battery codes. For example:

• LR44 is also known as AG13.
• LR626 may also appear under AG4 naming systems.

Because of this, many users search for CR/LR/SR/AG battery compatibility when selecting replacements.

Understanding Battery Size Numbers

The numerical codes assigned to these batteries indicate their physical dimensions. For example:

CR2032:

50. 20 = 20 mm diameter
50. 32 = 3.2 mm thickness

CR2025:

50. 20 = 20 mm diameter
50. 25 = 2.5 mm thickness

This naming method allows engineers and buyers to identify compatible button battery sizes quickly.

Main Types of Button Cell Batteries

Different types of button batteries are designed to meet various voltage and performance requirements.

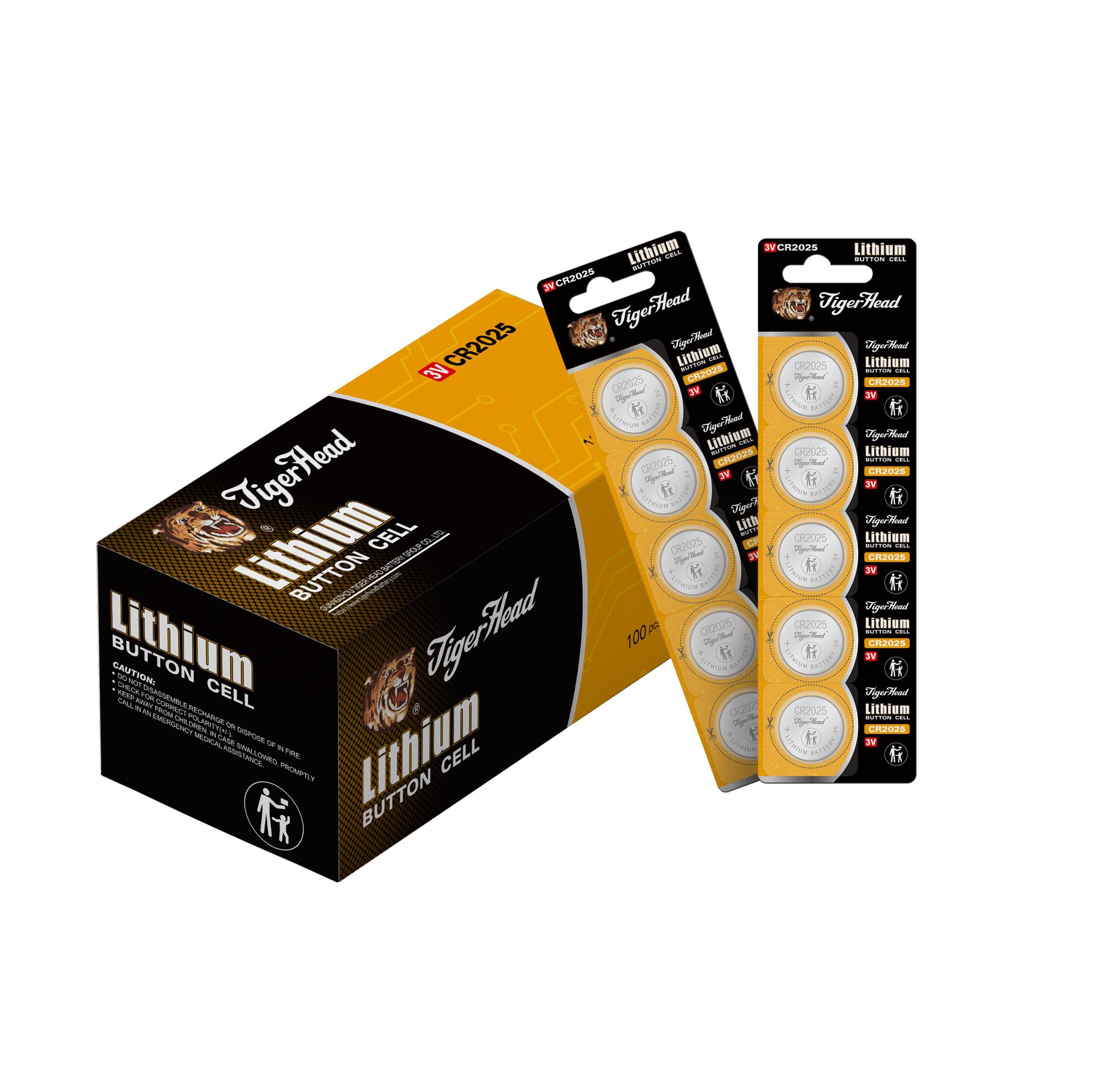

Lithium Button Cell Batteries (CR Series)

CR series lithium batteries are among the most widely used coin cell battery products.

Popular models include:

Lithium button cell battery products deliver consistent voltage, low self-discharge rate, and an extended shelf life. They are ideal for electronic devices that require stable long-term performance.

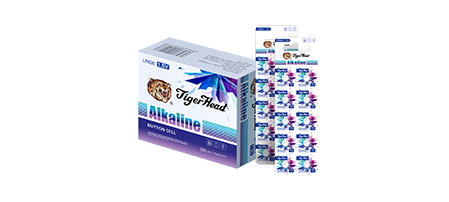

Alkaline Button Cell Batteries (LR Series)

LR series batteries are commonly used in low-power electronic devices.

Compared with lithium batteries, alkaline batteries generally have lower voltage and shorter storage life, but they are widely used in everyday consumer products.

Other Common Button Battery Chemistries

In addition to CR and LR series batteries, other chemistries are also available.

SR Batteries

SR batteries are silver oxide batteries commonly used in watches and precision instruments. They provide stable voltage output and reliable discharge performance.

Zinc-Air Batteries

Zinc-air batteries are widely used in hearing aids because of their high energy density.

Rechargeable Button Batteries

Rechargeable button batteries are designed for applications that require repeated charging cycles. These batteries are commonly used in wearable electronics and rechargeable portable devices.

Common Button Cell Battery Sizes and Dimensions

Understanding button battery sizes is important for device compatibility.

Variations in thickness directly impact battery capacity and runtime. Crucially, even if diameters are identical, batteries are not always interchangeable due to compartment constraints.

Applications of Button Cell Batteries

Medical Devices

Button cell battery products are widely used in digital thermometers, glucose meters, hearing devices, and portable monitoring equipment.

Stable voltage and compact size are important for medical electronics.

Wearable Electronics

Smart watches, fitness trackers, and wireless sensors often use compact coin cell batteries due to space limitations.

Rechargeable button battery models are increasingly used in wearable applications.

Remote Controls and Key Fobs

CR2025 and CR2032 batteries are commonly used in automotive key fobs and remote-control systems because of their stable power output and long storage life.

Industrial Backup Power

Industrial devices frequently use CR2032 batteries for memory backup and RTC (real-time clock) systems.

Many industrial applications require batteries that can maintain stable voltage during long idle periods.

How to Choose the Right Button Cell Battery?

Selecting the correct battery depends on several factors.

Voltage

Always confirm voltage compatibility before replacement. Using an incorrect voltage may affect device operation.

Dimensions

Diameter and thickness must match the battery compartment design.

Operating Environment

Temperature, humidity, and vibration conditions may influence battery performance.

Storage Life

Lithium batteries generally provide longer shelf life than alkaline batteries.

Understanding these factors can help buyers choose suitable button battery types for different applications.

Button Cell Battery Safety and Storage

Button cell batteries should be stored in a cool, dry place away from direct sunlight and metal objects.

For safety reasons:

• Keep batteries away from children.
• Avoid mixing old and new batteries.
• Do not recharge non-rechargeable batteries.
• Prevent batteries from short-circuiting during transportation and storage.

Proper recycling and disposal procedures should also follow local environmental regulations.

FAQs About Button Cell Batteries

Q1: Are button cell batteries rechargeable?

A: Some rechargeable button battery models are available, but many CR and LR batteries are non-rechargeable.

Q2: What is the difference between CR2032 and CR2025?

A: Both are 3V lithium batteries with the same diameter ; however, CR2032 is thicker and offers a higher capacity.

Q3: Are button cell and coin cell batteries interchangeable?

A: In most cases, the two terms refer to the same battery category.

Q4: What are AG battery models?

A: AG battery codes are alternative naming systems commonly used for alkaline button batteries.
